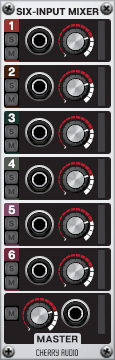

SIX-INPUT MIXER

The Six-Input Mixer module is a six-input, mono-out mixer for audio or CV signals featuring solos and mutes on each channel. Mixing audio signals is something most of you are probably familiar with but don’t forget that this is a CV mixer as well. LFOs, envelopes, pitch CVs, even clock and gate signals can all be mixed together to create unique and interesting control signals.

Inputs, Outputs and Controls

Input Channels 1 - 6

Input jack- Audio or CV input jack.

Level- This knob adjusts the level at which the input signal is sent to the master output.

S- Solo button for isolating the channel’s signal. When engaged, all channels that are not also soloed will be removed from the master output.

M- Mute button for removing the channel’s signal from the master output.

Level Meter- Visually shows the level at which the input signal is being sent to the master output.

Master

Volume- This knob controls the volume of the master output.

Output jack- This is the mixer’s master output jack.

M- Mute button for muting the master output.
